This is a guide demonstrating how to install new LED Daytime Running Lights for 2012-up Volkswagen Passat. This LED DRL replaces the already existing fog light bezel with a pretty straightforward installation. You’ll be on your way a new set of LED lamps in no time at all.
Before you proceed, please note that there are two versions of the front grill: straight grill and honeycomb grill . This guide features a straight grill for demonstration, but the installation process for both straight and honeycomb grille are the same.
Here is the straight grill and the honeycomb grill:
1. Gently remove the stock bezel (fog light cover).
These 30W CREE LED Backup Lights are quite the little energy emitters to make your ride stand out. If you’re anything like the owner of this 2009 Lexus IS250 and would do practically anything to make your car as unique as possible, our 921 LED Reverse Bulbs would be an excellent choice. They are extremely bright and make safety a number one priority, as you would have a clearer sight of everything that’s behind you.
This guide is to show how to install the daytime running light wiring in a 2012-up Subaru WRX. This is especially important because if we directly install the LED bulbs on 2012-up Subaru WRX high beam daytime running lights, the LED bulbs will not fully light up. The new LED bulbs for daytime running light is a great addition to make your stock Subaru WRX stand out.
1. Remove the plastic cover to access the bulbs underneath.

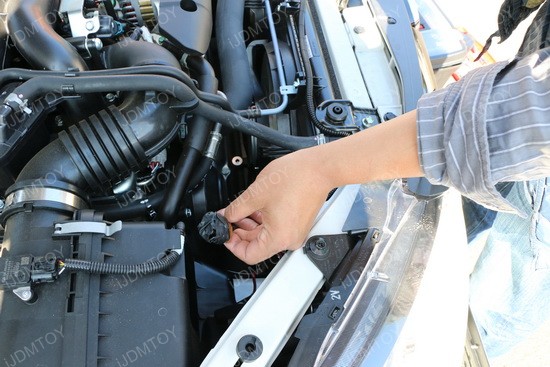

2. Unplug and remove the stock bulbs.
3. Install this specially designed LED DRL relay harness.
Please take a look at this diagram below to help illustrate the relay harness installation: Connect #4 and #5 to the LED bulbs Install the LED bulbs just like how we took out the stock bulbs Connect #3 and #2 to the ground To find a better ground, we need to find a bolt that has no paint and no rust. Connect #1 to battery positive. Always connect #1 last.
4. Connect #6 on the diagram to the driver’s side stock socket. For the passenger side stock socket, we cover it with black tape since it’s not going to be in use.
5. Test to see whether or not the lights work, if the light doesn’t work, flip #6 180 degrees.
As you can see, the installation isn’t difficult to attempt at all, and will give your Subaru WRX a nice set of of super bright LED Daytime Running Lights. LED Daytime Running Lights are such a great addition!
Want to give your prized baby a nice facelift? This xenon white BMW LED Eyelid is a great way to spice up your ride while adding some unique style and pizzazz on the road. This E60 LED eyelid mod is so exclusive that it’s only compatible with 2008-2010 BMW E60 5 Series only. You would also have to make sure your 5 Series has the LCI headlight before buying this add-on.
