Installing New Lexus LED Bumper Reflector Lights

Installing a pair of new LED bumper reflector lights can add in both style as well as safety for your car. This installation does involve removing the bumper and connecting some wiring; therefore, please take a look at this DIY guide to at least get a better idea on how to do this. These LED reflectors are compatible with 2008-up Lexus IS-F, 2003-2009 Lexus GX470, 1999-2003 Lexus RX300, 2011-up Toyota Sienna (For L LE XLE models only), 2009-2012 Toyota Matrix, 2009-up Toyota Venza, and 2013-up Toyota Avalon. If you want to upgrade your car but wasn’t sure what mod was worth it, these new bumper reflector LEDs are a great way to start.

1.) The original bumper reflectors are held on by clips or screws, so we recommend removal of the bumper to get a better access of the back. (1, 2)

Lexus LED Rear Bumper Reflector Lights 01

Lexus - IS - Installing - Bumper - Reflector - 02

2.) Find the stock taillight wire harness. Tap the LED bumper reflector wires (red, white, black). Match the black wire to stock brake light negative, white wire to taillight positive, and red wire to brake light positive. Connect the wires together with t-taps and cover any exposed wire with electrical tape. You can also extend the stock wire harness for a cleaner installation. (3)

Lexus LED Rear Bumper Reflector Lights 03

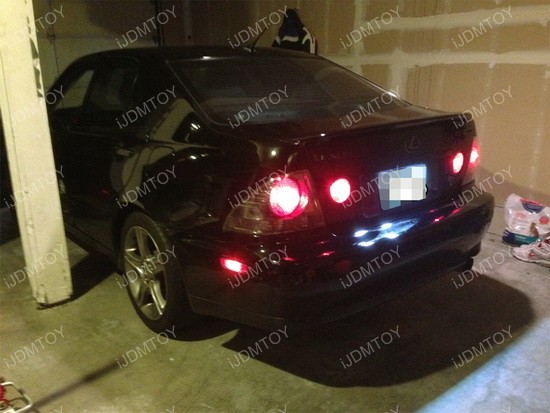

3.) Replace the stock bumper reflectors with the new LED bumper reflectors. Tap the wires and install everything back the same way it was removed. Test the lights to see if the LED reflector lights up. (4, 5, 6)

Lexus LED Rear Bumper Reflector Lights 04

Lexus LED Rear Bumper Reflector Lights 05

Lexus LED Rear Bumper Reflector Lights 06

As you can see, you don’t have to compromise safety with aesthetics! Your new LED bumper reflector lights are sure to make you stand out in the crowd and make your Lexus or Toyota very unique. Where can you get subtle, yet flashy at the same time?

Subaru WRX: How to Install LED DRL Wiring

This guide is to show how to install the daytime running light wiring in a 2012-up Subaru WRX. This is especially important because if we directly install the LED bulbs on 2012-up Subaru WRX high beam daytime running lights, the LED bulbs will not fully light up. The new LED bulbs for daytime running light is a great addition to make your stock Subaru WRX stand out.

1. Remove the plastic cover to access the bulbs underneath.

Subaru WRX LED Daytime Running Lights

2. Unplug and remove the stock bulbs.

Subaru WRX LED Daytime Running Lights

3. Install this specially designed LED DRL relay harness.

Subaru WRX LED Daytime Running Lights

Please take a look at this diagram below to help illustrate the relay harness installation: Connect #4 and #5 to the LED bulbs Install the LED bulbs just like how we took out the stock bulbs Connect #3 and #2 to the ground To find a better ground, we need to find a bolt that has no paint and no rust. Connect #1 to battery positive. Always connect #1 last.

Subaru WRX LED daytime running lights

Subaru WRX LED Daytime Running Lights

Subaru WRX LED Daytime Running Lights

Subaru WRX LED Daytime Running Lights

4. Connect #6 on the diagram to the driver’s side stock socket. For the passenger side stock socket, we cover it with black tape since it’s not going to be in use.

Subaru WRX LED Daytime Running Lights

5. Test to see whether or not the lights work, if the light doesn’t work, flip #6 180 degrees.

Subaru WRX LED Daytime Running Lights

Subaru WRX LED Daytime Running Lights

Subaru WRX LED Daytime Running Lights

Subaru WRX LED Daytime Running Lights

As you can see, the installation isn’t difficult to attempt at all, and will give your Subaru WRX a nice set of of super bright LED Daytime Running Lights. LED Daytime Running Lights are such a great addition!
